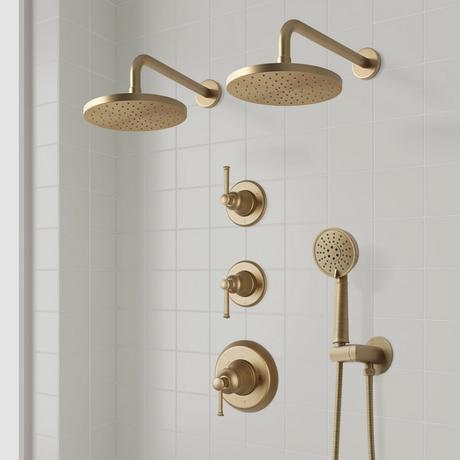

Greyfield Thermostatic Shower System with Dual Showerheads and Hand Shower

953973 null
3.5 out of 5 Customer Rating

Greyfield Thermostatic Shower System with Dual Showerheads and Hand Shower

953973 null
3.5 out of 5 Customer Rating
Select an Option
Select an Option Select an Option
Select an Option Select an Option

Starting At

$1,92700
Free Shipping
Select Styles for Availability
You’ve reached the maximum quantity available

Estimate your Delivery Date

Transform your primary bathroom into a luxurious escape with the Greyfield Thermostatic Shower System with Dual Showerheads and Hand Shower. Designed for optimal rinsing and shared use, the Greyfield features dual showerheads and a convenient hand shower, complete with sleek yet elegant silhouettes throughout every piece. Thermostatic technology carefully mixes your hot and cold water supplies, maintaining your selected water temperature for both comfort and safety. To best complement your space, choose from our selection of eye-catching, corrosion-resistant finishes.
Greyfield Thermostatic Valve Trim:
  • Metal handle.
  • Temperature outlet factory preset to 104 degrees Fahrenheit.
  • Temperature can be easily adjusted up and down to user's comfort level.
  • Scald guard protection.
  • High temperature limit stop.
  • Thermostatic technology keeps shower temperature within 1 degree Celsius.
  • Wall thickness range: 1" to 1-3/4"
  • Thermostatic Rough-In Valve - 3/4" Connection:
  • Bronze valve body.
  • Factory-calibrated comfort setting at 104 degrees Fahrenheit.
  • Water inlet stops and check valve.
  • Thermostatic technology keeps shower temperature ±1 degree Celsius.
  • 12" Wall-Mount Rainfall Shower Arm:
  • Solid brass construction.
  • Escutcheon included.
  • 8" Modern Round Rainfall Shower Head - 1.8 GPM:
  • Single function shower head (full spray).
  • Easy clean rubber nozzles.
  • Brass ball joint.
  • Round Paddle Multifunction Hand Shower :
  • 3 function hand shower (full spray, massage spray, full & massage spray).
  • Easy-clean spray nozzles.
  • Factory installed backflow prevention check valve.
  • Hose sold separately.
  • 60" Stretchable Metal Hand Shower Hose:
  • Double spiral constructed hose.
  • Swivel Water Supply Elbow and Bracket for Hand Shower:
  • 1/2" Female wall connection.
  • 1/2" Male hose connection.
  • Brass inlet/outlet, ABS body.
  • Greyfield In-Wall shower Diverter Trim :
  • Metal handle.
  • Metal Escutcheon.
  • 3-Way In-Wall Diverter Rough-In Valve - 3/4":
  • For installations only requiring 2 outlets, the 3rd outlet may be looped into one of the existing pipes.
  • Beasley In-Wall Shower Volume Control Trim :
  • Overall Projection: 3-7/8".
  • Wall thickness range: 1" to 1-3/4".
  • Volume Control Rough-In Valve:
  • Intended for use with a thermostatic valve and trim.
  • Bronze valve body.

  • Features
    Product Type Shower Systems & Faucets
    Assembly Required Yes
    Ceramic Disc Cartridges Yes
    Design Modern
    Diverter Included Yes
    Features Rough-In Included
    Handle Type Lever
    Hand Shower Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
    Hand Shower Material ABS
    Installation Type Wall Mount
    Material Brass, ABS
    Mounting Hardware Included Yes
    Number of Shower Heads 2
    Rainfall Shower Head Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
    Shape Round
    Shower Arm Included Yes
    Shower Head Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
    Shower Head Installation Type Wall
    Shower Head Spray Rainfall
    Shower Head Swivel Yes
    Dimensions
    Hand Shower Hose Length 60"
    Hand Shower Length 9-5/8"
    Shower Arm Extension 12-3/8"
    Shower Arm Height 5-3/8"
    Shower Head IPS 1/2" NPSM
    Shower Head Length 8"
    Shower Head Width 8"
    Valve Trim Height 6-11/16"
    Valve Trim Width 6-11/16"
