Beasley Thermostatic Shower System with 3 Body Sprays, Slide Bar and Hand Shower

Shop the Beasley Collection

Select an Option

Starting At

$2,355⁰⁰

Free Shipping

Details

Select Styles for Availability

Experience spa-like luxury from your own home with the Beasley Thermostatic Shower System with 3 Body Sprays, Slide Bar & Hand Shower. Ensuring optimal rinsing and relaxation, the Beasley boasts three body sprays along with a convenient hand shower, which mounts to a slide bar for easily customizing its height to the user or task. To keep your desired water temperature maintained during your showers, the included thermostatic valve mixes hot and cold water supplies carefully throughout use. Promising lasting quality, choose from our selection of stunning, rust-resistant finishes to best complement your space.

Beasley Thermostatic Shower Valve Trim:

Overall Projection: 7".

Temperature outlet factory preset to 104 degrees Fahrenheit.

Temperature can be easily adjusted up and down to user's comfort level.

Scald guard protection.

High temperature limit stop.

Thermostatic technology keeps shower temperature within 1 degree Celsius.

Wall thickness range: 1" to 1-3/4".

Thermostatic Rough-In Valve - 3/4" Connection:

Bronze valve body.

Factory-calibrated comfort setting at 104 degrees Fahrenheit.

Water inlet stops and check valve.

Thermostatic technology keeps shower temperature ±1 degree Celsius.

12" Wall-Mount Rainfall Shower Arm:

Solid brass construction.

Escutcheon included.

8" Modern Round Rainfall Shower Head - 1.8 GPM :

Single function shower head (full spray).

Easy clean rubber nozzles.

Brass ball joint.

Pinecrest Hand Shower:

3 function hand shower (full spray, massage spray, full & massage spray).

Easy-clean spray nozzles.

Factory installed backflow prevention check valve.

60" Stretchable Metal Hand Shower Hose:

Double spiral constructed hose.

Swivel Water Supply Elbow and Bracket for Hand Shower :

1/2" Female wall connection.

1/2" Male hose connection.

Brass inlet/outlet, ABS body.

Beasley In-Wall Shower Diverter Trim:

Metal handle.

Metal Escutcheon.

3-Way In-Wall Diverter Rough-In Valve - 3/4":

For installations only requiring 2 outlets, the 3rd outlet may be looped into one of the existing pipes.

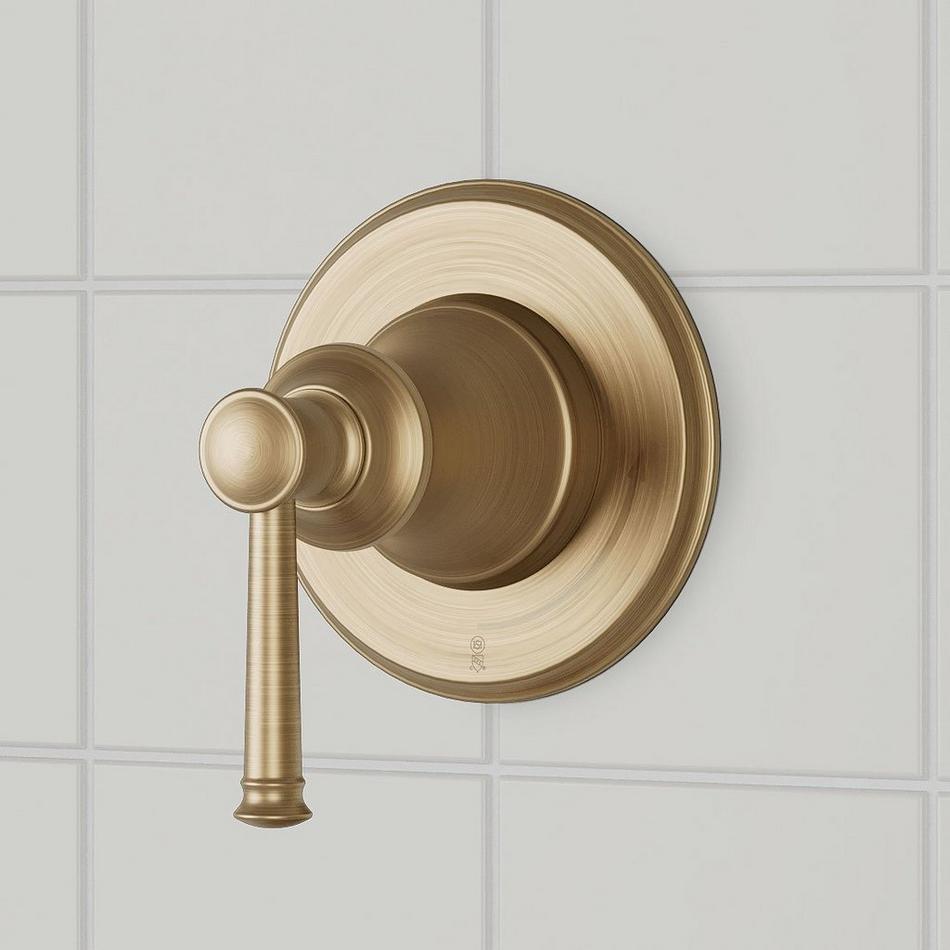

Beasley In-Wall Shower Volume Control Trim:

Overall Projection: 3-7/8".

Wall thickness range: 1" to 1-3/4".

Volume Control Rough-In Valve:

Intended for use with a thermostatic valve and trim.

Bronze valve body.

30" Traditional Slide Bar for Hand Shower:

Metal bar and mounting posts.

Adjustable angle for hand shower mount.

Shop more of the Beasley Collection

Features

Product Type Shower Systems & Faucets

Assembly Required Yes

Body Spray Flow Rate 2.5 gpm (9.5 L/min) @ 80 psi

Body Sprays Yes

Ceramic Disc Cartridges Yes

Design Modern

Diverter Included Yes

Features Rough-In Included

Handle Type Lever

Hand Shower Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi

Hand Shower Material ABS

Installation Type Wall Mount

Material Metal, ABS

Mounting Hardware Included Yes

Number of Body Sprays 3

Number of Shower Heads 1

Rainfall Shower Head Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi

Shape Round

Shower Arm Included Yes

Shower Head Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi

Shower Head Installation Type Wall

Shower Head Spray Rainfall

Shower Head Swivel Yes

Dimensions

Hand Shower Hose Length 60"

Hand Shower Length 9-1/8"

Shower Arm Extension 12-3/8"

Shower Arm Height 5-3/8"

Shower Head IPS 1/2" NPSM

Shower Head Length 8"

Shower Head Width 8"

Slide Bar Length 30"

Valve Trim Height 6-3/4"

Valve Trim Width 6-3/4"

Resources

Specifications Installation Instructions Parts Breakdown

SKU 953965

Collection Beasley
